Argus C44R Parts Guide:  Lens Mount and Shutter


FIGURE    PART#      DESCRIPTION              NO. REQ.

1         21319      Focusing Gear            1
2         21386      Focusing Gear Spacer     1
3         21821      Shutter Assembly         1
4         21322-1/6  Shim (.005) thru (.010)  0-1
5         21832*      Lens Socket Assembly    1
6         90173      Socket Screw             5
7         21310      Lens Lock Lever          1
8         21308      Lock Lever Bushing       1
9         21319      Lock Lever Screw         1
10        21824      Gear Key Ring Assembly   1
11        14215      Setscrew                 3
12        21823      Release Lever Assembly   1
13        21339      Release Lever Rivet      1
14        21330      Release Spring           1
15        21362      Hub                      1

* This part must be machined to match camera body.

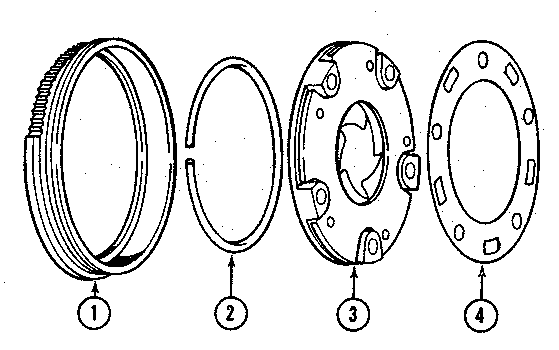

FIGURE PART# DESCRIPTION                 NO. REQ.

1      21319 Focusing Gear               1
2      21386 Focusing Gear Spacer        1
3      21821 Shutter Assembly            1
4      21322-1/6 Shim (.005) thru (.010) 0-1

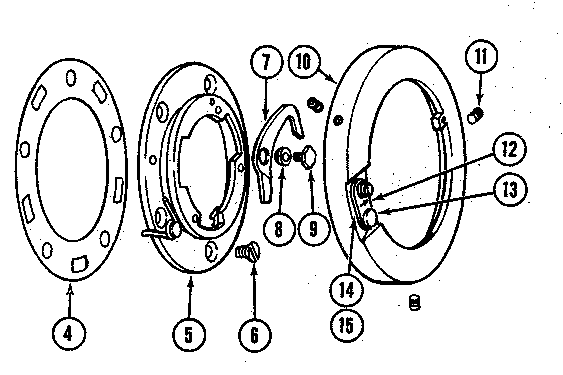

FIGURE  PART#      DESCRIPTION               NO. REQ.

4       21322-1/6  Shim (.005) thru (.010)   0-1
5       21832*     Lens Socket Assembly      1
6       90173      Socket Screw              5
7       21310      Lens Lock Lever           1
8       21308      Lock Lever Bushing        1
9       21319      Lock Lever Screw          1
10      21824      Gear Key Ring Assembly    1
11      14215      Setscrew                  3
12      21823      Release Lever Assembly    1
13      21339      Release Lever Rivet       1
14      21330      Release Spring            1
15      21362      Hub                       1

* This part must be machined to match camera body.
